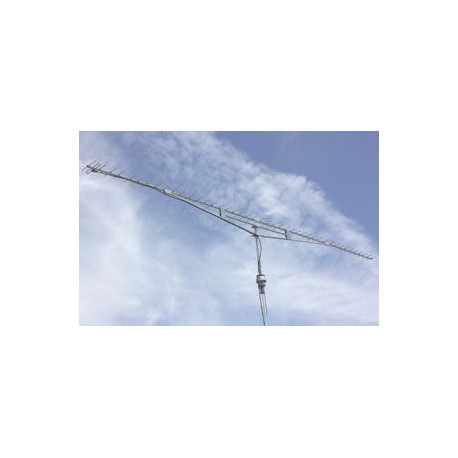

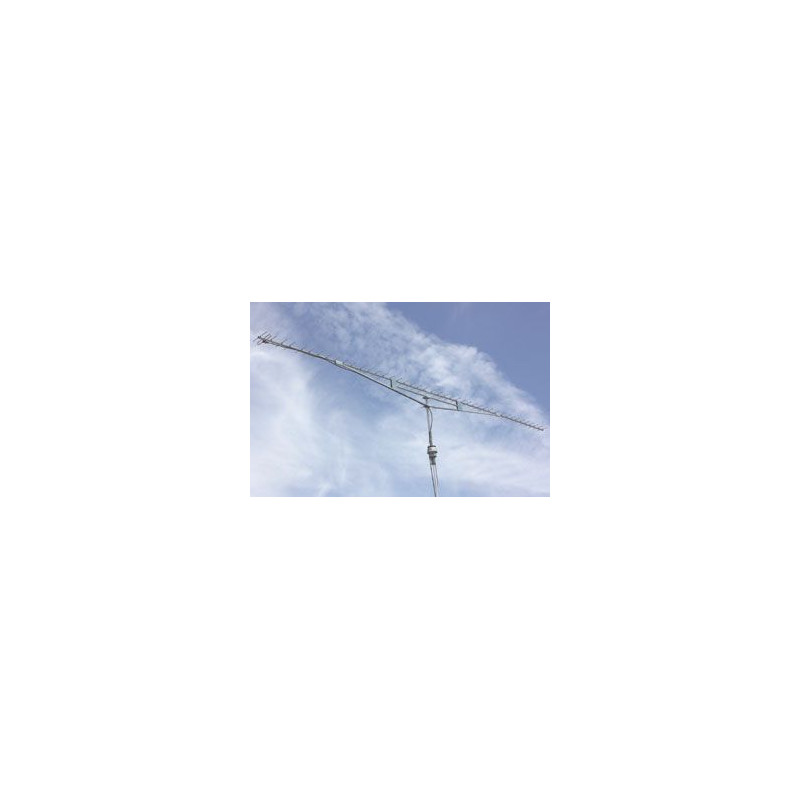

F9FT AFT-20344, 430-440 MHz 44 elementos Pro XL/11

F9FT AFT-20344 430-440 MHz 44 elementos Pro XL/110 L

• Effective electrical length: 10.99 l

• Isotropic gain: 20.2 dBi

• Aperture angle @ -3 dB: - E-plane: 2 x 8.5°  - H-plane: 2 x 10.9°

• First side lobe set: - E-plane: - 15 dB @ 20°  - H-plane: - 18 dB @ 20°

• Rear protection: - 22.1 dB

• Average stray radiation: - E-plane: - 39 dB  - H-plane: - 34 dB

• Bandwidth: Gain @ -1 dB: 428 to 442 MHz

• Nominal impedance: 50 Ohm

• Impedance match bandwidth @ SWR<1.3/1: 429 to 445 MHz

• Maximum RF power (peak, SSB/CW): 1000 W

• Array of 2 or 4 antennas: (optimized stacking distance, from center to center of elements, for minimal side lobe radiation)
  - E plane: Electrical distance: 3.0 l
  - E-plane: Practical distance: 2.1 m
  - H-plane: Electrical distance: 3.0 l
  - H-plane: Practical distance: 2.1 m

• Connector: N

• Overall length: 7.59 m

• Mass: 16.2 kg

• Effective wind load: - Horizontal polarisation: 0.47 m2 - Vertical polarisation: 0.65 m2

• Approximate wind load (25m/s - 55 mph):
  - Horizontal polarization: 15.9 daN
  - Vertical polarization: 23.7 daN

• Approximate wind load (45m/s - 100 mph):
  - Horizontal polarization: 52.4 daN
  - Vertical polarization: 76.1 daN
