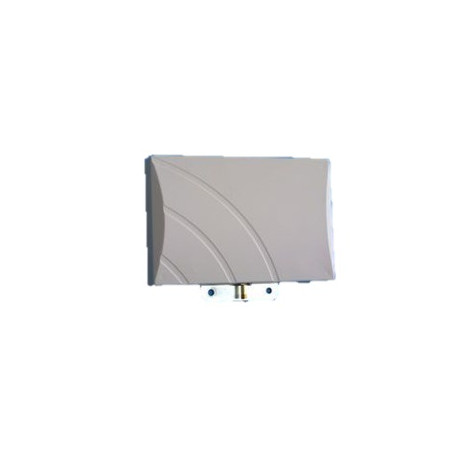

F9FT AFT-20701, 2,4-25 GHz 9 dB 1 célula

F9FT AFT-20701, 2,4-2.5 GHz 9 dB 1 célula

• Radiation at 2450 MHz

• Effective electrical length: 1

• Isotropic gain: 9 dBi

• Aperture angle @ -3 dB: - E-plane: 2 x 27°  - H-plane: 2 x 27°

• First side lobe set: - E-plane: None  - H-plane: None

• Rear protection: - 20 dB

• Average stray radiation: - E-plane: -  - H-plane: -

• Bandwidth: Gain @ -1 dB: 2400 to 2500 MHz

• Nominal impedance: 50 Ohm

• Impedance match bandwidth @ SWR<1.3/1: 2400 to 2500 MHz

• Acceptable RF power (continous duty): 10 W

• Connector: SMA

• Overall length: 185 mm

• Mass: 0.4 kg

• Effective wind load:
  - Horizontal polarisation: 0.023 m2
  - Vertical polarisation: 0.004 m2

• Approximate wind load (25m/s - 55 mph):
  - Horizontal polarisation: 0.88 daN
  - Vertical polarisation: 0.15 daN

• Approximate wind load (45m/s - 100 mph):
  - Horizontal polarisation: 2.84 daN
  - Vertical polarisation: 0.49 daN
